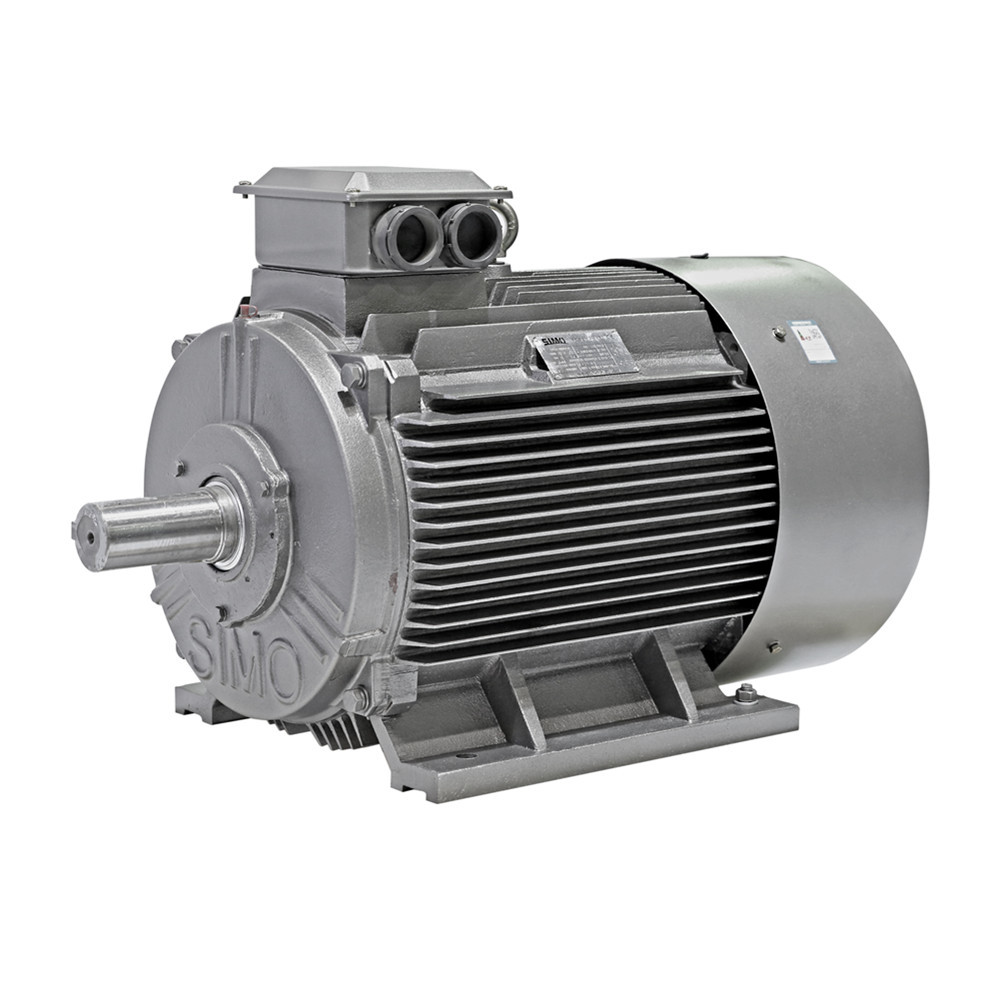

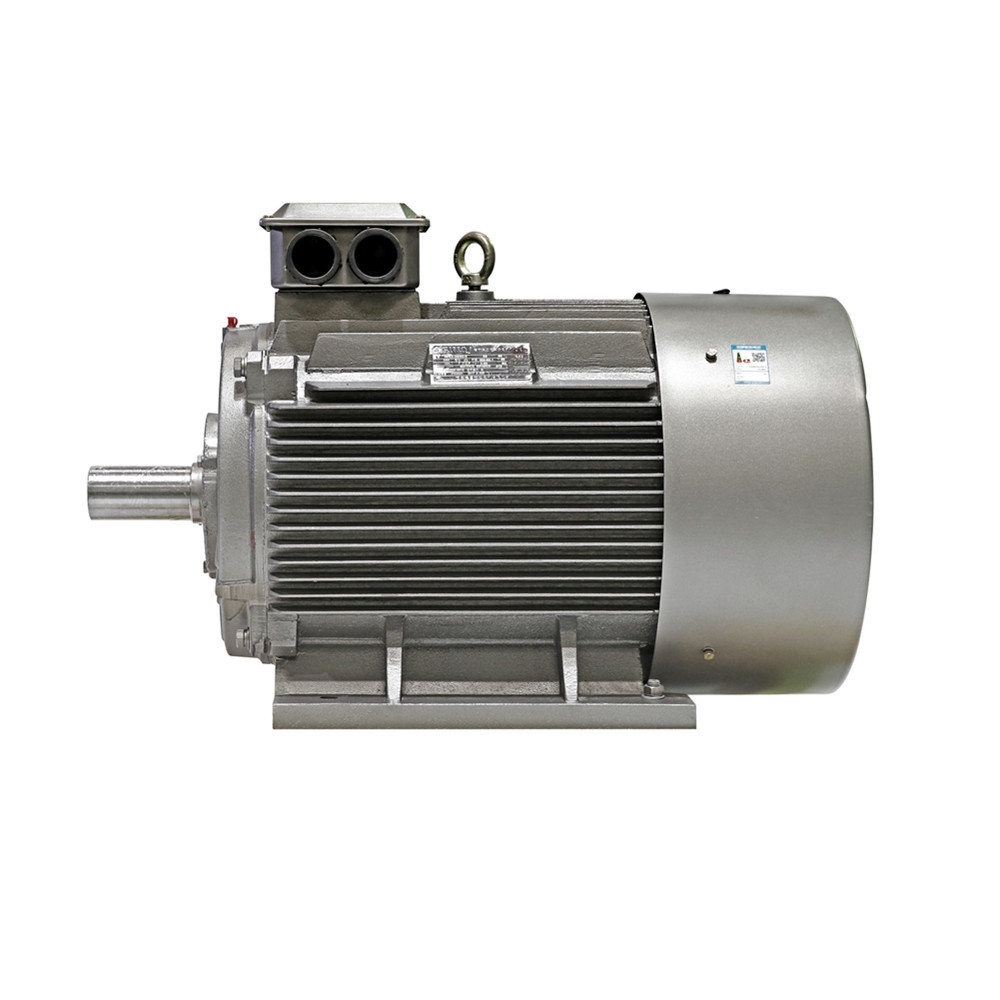

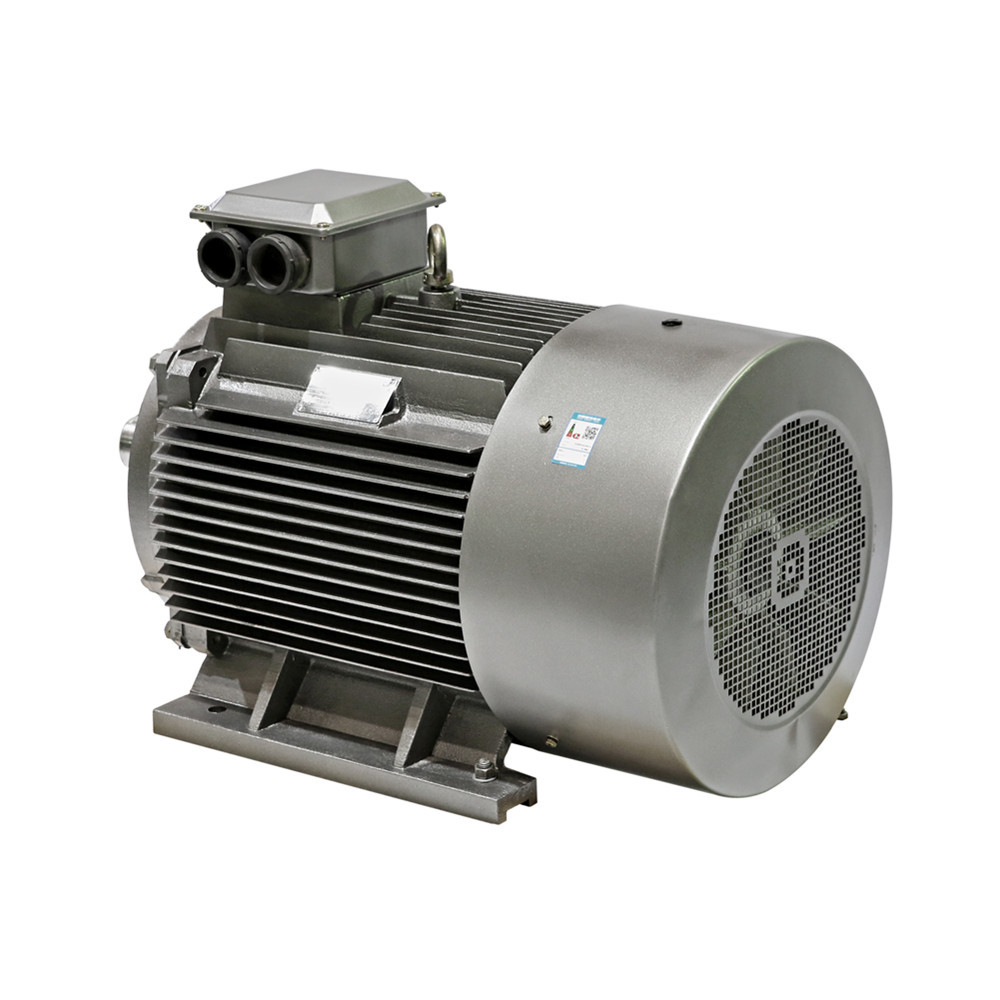

de Klasse F IM van 380V IP55 Asynchrone de Motorenergie van B3 AC - besparing
| Plaats van herkomst | China |
|---|---|
| Merknaam | Simo Motor |
| Certificering | 3C,CE,GOST,CNAS,UL,QMS,EMS |
| Modelnummer | YE4 reekshoog rendement en LV Asynchrone Motor In drie stadia |
| Min. bestelaantal | 1 |
| Verpakking Details | Stevig Houten Pakket |
| Levertijd | 50-60 werkdagen |
| Betalingscondities | T/T |
Productdetails
| Type | AC Asynchrone Motor | Kader | H80-H355 |
|---|---|---|---|
| Voltage | 380V, 400V, 415V, 660V, 690V, 220/380V, 380/660V, 400/690V, enz. | Nr. Van polen | 2P, 4P, 6P, 8P, 10P, 12P |
| Efficiencyrang | Rang 1 van CEI 60034-30 (IE4) | Beschermingsrang | IP55 |
| Macht | 0.18kW-315kW | Frequentie | 50Hz |
| Eigenschap | Energie - besparing | Koeltype | IC411 |
| Opzettend type | IM B3, IM B35, IM B5, IM V1, ENZ. | ||
| Hoog licht | IM de Asynchrone Motor van B3 AC,IP55 AC Asynchrone Motor,380V AC Asynchrone Motor |
||
Productomschrijving
de Klasse F IM van 380V IP55 Asynchrone de Motorenergie van B3 AC - besparing
Technische Voordelen
Deze reeks van hoog rendement asynchrone motor in drie stadia is totaal ingesloten zelf-geventileerde eekhoorn-kooi asynchrone die motor in drie stadia door ons bedrijf wordt vervaardigd. De motorhuisvesting keurt over het algemeen goed hoog-versterkt grijs ijzer, en de rol keurt fijne anticorrosieve kuiperdraad goed.
Producteigenschappen
Deze reeks van AC Asynchrone Motor heeft de voordelen van uitstekende prestaties, hoog rendement, energy-saving, de grote marge van de temperatuurstijging, trilling met lange levensuur, lage, uitstekende beginnende prestaties, knappe verschijning en hoge betrouwbaarheid.
Verrichtingsvoorwaarden
De omgevingstemperatuur is -15℃~+40℃; Hoogte ≤1KM; en maandelijkse gemiddelde luchtvochtigheid ≤90% (als de temperatuur 25℃ is).
Brede Toepassing
Deze reeks van AC Asynchrone Motor wordt algemeen gebruikt om waterpompen, ventilators, compressoren, transportbanden en andere transmissiemachines in energiebehoud en milieubescherming transformatieprojecten, de nationale projecten van de watermilieubescherming, enz. te drijven.
Profielvertoning
Beschikbare Soorten YE4
|
Type |
Geschatte Macht kW |
Geschatte Stroom A |
Snelheid r/min |
Efficiency % |
Machtsfactor Cosφ |
Gesloten torsie |
Gesloten huidig |
Max. torsie |
Geschat Torsie N.m |
Ogenblik van Inertie kg•m2 |
Lawaai |
Gewicht Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Geschat Torsie |
Geschat Huidig |
Geschatte Torsie |
||||||||||
| Synchrone Snelheid 3000r/min | ||||||||||||
| Ye4-80m1-2 | 0,75 | 1.6 | 2880 | 83.5 | 0,83 | 2.2 | 8.5 | 2.3 | 2.4 | -- | 62 | -- |
| Ye4-80m2-2 | 1.1 | 3.5 | 2880 | 85.2 | 0,83 | 2.2 | 8.5 | 2.3 | 3.5 | -- | 62 | -- |
| Ye4-jaren '90-2 | 1.5 | 3.1 | 2890 | 86.5 | 0,85 | 2.2 | 9.0 | 2.3 | 4.8 | -- | 67 | -- |
| Ye4-90l-2 | 2.2 | 4.4 | 2890 | 88.0 | 0,86 | 2.2 | 9.0 | 2.3 | 7.0 | -- | 67 | -- |
| Ye4-100l-2 | 3 | 5.9 | 2910 | 89.1 | 0,87 | 2.2 | 9.5 | 2.3 | 9.6 | -- | 74 | -- |
| Ye4-112m-2 | 4 | 7.7 | 2910 | 90.0 | 0,88 | 2.2 | 9.5 | 2.3 | 12.8 | -- | 77 | -- |
| Ye4-132s1-2 | 5.5 | 10.4 | 2945 | 90.9 | 0,88 | 2.0 | 9.5 | 2.3 | 17.5 | 0,02 | 79 | 75 |
| Ye4-132s2-2 | 7.5 | 14.0 | 2940 | 91.7 | 0,89 | 2.0 | 9.5 | 2.3 | 23.9 | 0,03 | 79 | 81 |
| Ye4-160m1-2 | 11 | 20.3 | 2950 | 92.6 | 0,89 | 2.0 | 9.5 | 2.3 | 35.0 | 0,06 | 81 | 136 |
| Ye4-160m2-2 | 15 | 27.4 | 2950 | 93.3 | 0,89 | 2.0 | 9.5 | 2.3 | 47.8 | 0,08 | 81 | 149 |
| Ye4-160l-2 | 18.5 | 34.2 | 2950 | 93.7 | 0,89 | 2.0 | 9.5 | 2.3 | 58.9 | 0,09 | 81 | 168 |
| Ye4-180m-2 | 22 | 40.0 | 2965 | 94.0 | 0,89 | 2.0 | 9.5 | 2.3 | 70.0 | 0,13 | 83 | 208 |
| Ye4-200l1-2 | 30 | 54.2 | 2970 | 94.5 | 0,89 | 2.0 | 9.0 | 2.3 | 95.5 | 0,22 | 84 | 272 |
| Ye4-200l2-2 | 37 | 66.6 | 2975 | 94.8 | 0,89 | 2.0 | 9.0 | 2.3 | 117.8 | 0,26 | 84 | 284 |
| Ye4-225m-2 | 45 | 80.9 | 2975 | 95.0 | 0,89 | 2.0 | 9.0 | 2.3 | 143.3 | 0,34 | 86 | 342 |
| Ye4-250m-2 | 55 | 98.5 | 2980 | 95.3 | 0,89 | 2.0 | 9.0 | 2.3 | 175.1 | 0,76 | 89 | 496 |
| Ye4-280s-2 | 75 | 133.8 | 2980 | 95.6 | 0,89 | 1.8 | 8.5 | 2.3 | 238.8 | 0,92 | 91 | 580 |
| Ye4-280m-2 | 90 | 160.4 | 2980 | 95.8 | 0,89 | 1.8 | 8.5 | 2.3 | 286.5 | 1.11 | 91 | 667 |
| Ye4-315s-2 | 110 | 195.6 | 2975 | 96.0 | 0,89 | 1.8 | 8.5 | 2.3 | 350.2 | 1.58 | 92 | 941 |
| Ye4-315m-2 | 132 | 234.2 | 2975 | 96.2 | 0,89 | 1.8 | 8.5 | 2.3 | 420.2 | 1.78 | 92 | 965 |
| Ye4-315l1-2 | 160 | 283.6 | 2975 | 96.3 | 0,89 | 1.8 | 8.5 | 2.2 | 509.3 | 2.04 | 92 | 1038 |
| Ye4-315l-2 | 185 | 327.6 | 2975 | 96.4 | 0,89 | 1.8 | 8.5 | 2.2 | 588.9 | 2.27 | 92 | 985 |
| Ye4-315l2-2 | 200 | 353.8 | 2975 | 96.5 | 0,89 | 1.8 | 8.5 | 2.2 | 636.7 | 2.27 | 92 | 1103 |
| Ye4-355m1-2 | 220 | 389.2 | 2985 | 96.5 | 0,90 | 1.6 | 8.5 | 2.2 | 700.3 | 2.86 | 100 | 1520 |
| Ye4-355m-2 | 250 | 432.6 | 2985 | 96.5 | 0,91 | 1.6 | 8.5 | 2.2 | 795.8 | 3.27 | 100 | 1570 |
| Ye4-355l1-2 | 280 | 484.5 | 2985 | 96.5 | 0,91 | 1.6 | 8.5 | 2.2 | 891.3 | 3.83 | 100 | 1717 |
| Ye4-355l-2 | 315 | 545.0 | 2985 | 96.5 | 0,91 | 1.6 | 8.5 | 2.2 | 1003 | 4.03 | 100 | 1730 |
| Synchrone Snelheid 1500 r/min | ||||||||||||
| Ye4-80m-4 | 0,75 | 1.8 | 1435 | 85.7 | 0,74 | 2.3 | 8.5 | 2.3 | 4.8 | -- | 62 | -- |
| Ye4-jaren '90-4 | 1.1 | 2.6 | 1440 | 87.2 | 0,75 | 2.3 | 8.5 | 2.3 | 7.0 | -- | 67 | -- |
| Ye4-90l-4 | 1.5 | 3.4 | 1440 | 88.2 | 0,76 | 2.3 | 9.0 | 2.3 | 9.6 | -- | 67 | -- |
| Ye4-100l1-4 | 2.2 | 4.7 | 1450 | 89.5 | 0,79 | 2.3 | 9.0 | 2.3 | 14.0 | -- | 74 | -- |
| Ye4-100l2-4 | 3 | 6.3 | 1450 | 90.4 | 0,80 | 2.3 | 9.5 | 2.3 | 19.0 | -- | 74 | -- |
| Ye4-112m-4 | 4 | 8.3 | 1450 | 91.1 | 0,80 | 2.2 | 9.5 | 2.3 | 25.5 | -- | 77 | -- |
| Ye4-132s-4 | 5.5 | 11.4 | 1470 | 91.9 | 0,80 | 2.0 | 9.5 | 2.3 | 35.0 | 0,06 | 771 | 87 |
| Ye4-132m-4 | 7.5 | 15.2 | 1470 | 92.6 | 0,81 | 2.0 | 9.5 | 2.3 | 47.8 | 0,07 | 71 | 98 |
| Ye4-160m-4 | 11 | 21.6 | 1475 | 93.3 | 0,83 | 2.0 | 9.5 | 2.3 | 70.0 | 0,13 | 73 | 146 |
| Ye4-160l-4 | 15 | 28.9 | 1475 | 93.9 | 0,84 | 2.0 | 9.5 | 2.3 | 95.5 | 0,17 | 73 | 158 |
| Ye4-180m-4 | 18.5 | 35.1 | 1480 | 94.2 | 0,85 | 2.0 | 9.5 | 2.3 | 117.8 | 0,23 | 76 | 209 |
| Ye4-180l-4 | 22 | 41.6 | 1480 | 94.5 | 0,85 | 2.0 | 9.5 | 2.3 | 140.1 | 0,25 | 76 | 224 |
| Ye4-200l-4 | 30 | 56.5 | 1485 | 94.9 | 0,85 | 2.0 | 9.0 | 2.3 | 191.0 | 0,45 | 76 | 277 |
| Ye4-225s-4 | 37 | 69.5 | 1485 | 95.2 | 0,85 | 2.0 | 9.0 | 2.3 | 235.6 | 0,64 | 78 | 344 |
| Ye4-225m-4 | 45 | 84.3 | 1485 | 95.4 | 0,85 | 2.0 | 9.0 | 2.3 | 286.5 | 0,74 | 78 | 357 |
| Ye4-250m-4 | 55 | 101.5 | 1485 | 95.7 | 0,86 | 2.0 | 9.0 | 2.3 | 350.1 | 1.05 | 79 | 450 |
| Ye4-280s-4 | 75 | 136.4 | 1490 | 96.0 | 0,87 | 2.0 | 8.5 | 2.3 | 477.2 | 1.75 | 80 | 621 |
| Ye4-280m-4 | 90 | 161.7 | 1490 | 96.1 | 0,88 | 2.0 | 8.5 | 2.3 | 573.0 | 2.08 | 80 | 690 |
| Ye4-315s-4 | 110 | 195.0 | 1485 | 96.3 | 0,89 | 1.8 | 8.5 | 2.2 | 700.3 | 3.33 | 88 | 875 |
| Ye4-315m-4 | 132 | 233.8 | 1485 | 96.4 | 0,89 | 1.8 | 8.5 | 2.2 | 840.4 | 3.71 | 88 | 965 |
| Ye4-315l1-4 | 160 | 279.6 | 1485 | 96.6 | 0,90 | 1.8 | 8.5 | 2.2 | 1019 | 4.31 | 88 | 1045 |
| Ye4-315l-4 | 185 | 323.0 | 1485 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1178 | 5.13 | 88 | 1149 |
| Ye4-315l2-4 | 200 | 349.2 | 1485 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1273 | 5.13 | 88 | 1149 |
| Ye4-355m1-4 | 220 | 384.1 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1401 | 9.25 | 95 | 1607 |
| Ye4-355m-4 | 250 | 436.5 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1592 | 9.99 | 95 | 1806 |
| Ye4-355l2-4 | 280 | 488.8 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 1783 | 10.64 | 95 | 1820 |
| Ye4-355l-4 | 315 | 549.9 | 1490 | 96.7 | 0,90 | 1.8 | 8.5 | 2.2 | 2006 | 10.91 | 95 | 1890 |
| Synchrone Snelheid 1000 r/min | ||||||||||||
| Ye4-jaren '90-6 | 0,75 | 2.0 | 950 | 82.7 | 0,70 | 2.1 | 7.5 | 2.1 | 7.2 | -- | 67 | -- |
| Ye4-90l-6 | 1.1 | 2.8 | 950 | 84.5 | 0,70 | 2.1 | 7.5 | 2.1 | 10.5 | -- | 67 | -- |
| Ye4-100l-6 | 1.5 | 3.7 | 955 | 85.9 | 0,71 | 2.1 | 7.5 | 2.1 | 14.3 | -- | 74 | -- |
| Ye4-112m-6 | 2.2 | 5.5 | 955 | 87.4 | 0,71 | 2.0 | 7.5 | 2.1 | 21.0 | -- | 77 | -- |
| Ye4-132s-6 | 3 | 7.2 | 970 | 88.6 | 0,71 | 2.0 | 7.5 | 2.1 | 28.7 | 0,04 | 69 | 61 |
| Ye4-132m1-6 | 4 | 9.4 | 970 | 89.5 | 0,72 | 2.0 | 8.0 | 2.1 | 38.2 | 0,06 | 69 | 76 |
| Ye4-132m2-6 | 5.5 | 12.8 | 970 | 90.5 | 0,72 | 2.0 | 8.0 | 2.1 | 52.5 | 0,07 | 69 | 87 |
| Ye4-160m-6 | 7.5 | 16.4 | 980 | 91.3 | 0,76 | 2.0 | 8.0 | 2.1 | 71.6 | 0,14 | 73 | 140 |
| Ye4-160l-6 | 11 | 23.5 | 980 | 92.3 | 0,77 | 2.0 | 8.5 | 2.1 | 105.1 | 0,19 | 73 | 160 |
| Ye4-180l-6 | 15 | 30.7 | 985 | 92.9 | 0,80 | 2.0 | 8.5 | 2.1 | 143.3 | 0,31 | 73 | 187 |
| Ye4-200l1-6 | 18.5 | 37.6 | 985 | 93.4 | 0,80 | 2.0 | 8.5 | 2.3 | 176.7 | 0,44 | 73 | 259 |
| Ye4-200l2-6 | 22 | 44.0 | 985 | 93.7 | 0,81 | 2.0 | 8.5 | 2.1 | 210.1 | 0,55 | 73 | 286 |
| Ye4-225m-6 | 30 | 59.0 | 990 | 94.2 | 0,82 | 2.0 | 8.5 | 2.1 | 286.5 | 0,82 | 74 | 314 |
| Ye4-250m-6 | 37 | 71.7 | 990 | 94.5 | 0,83 | 2.0 | 8.3 | 2.1 | 353.3 | 1.43 | 76 | 429 |
| Ye4-280s-6 | 45 | 86.9 | 990 | 94.8 | 0,83 | 2.0 | 8.5 | 2.0 | 429.8 | 2.22 | 78 | 539 |
| Ye4-280m-6 | 55 | 104.6 | 990 | 95.1 | 0,84 | 2.0 | 8.5 | 2.0 | 525.3 | 2.68 | 78 | 607 |
| Ye4-315s-6 | 75 | 143.2 | 990 | 95.4 | 0,84 | 1.6 | 8.0 | 2.0 | 716.3 | 3.91 | 83 | 816 |
| Ye4-315m-6 | 90 | 168.3 | 990 | 95.6 | 0,85 | 1.6 | 8.0 | 2.0 | 859.5 | 4.42 | 83 | 900 |
| Ye4-315l1-6 | 110 | 205.2 | 990 | 95.8 | 0,85 | 1.6 | 8.0 | 2.0 | 1051 | 5.50 | 83 | 999 |
| Ye4-315l2-6 | 132 | 242.9 | 990 | 96.0 | 0,86 | 1.6 | 8.0 | 2.0 | 1261 | 6.81 | 83 | 1114 |
| Ye4-355m1-6 | 160 | 293.8 | 990 | 96.2 | 0,86 | 1.6 | 8.0 | 2.0 | 1528 | 10.63 | 85 | 1622 |
| Ye4-355m-6 | 185 | 339.8 | 990 | 96.2 | 0,86 | 1.6 | 8.0 | 2.0 | 1767 | 11.33 | 85 | 1660 |
| Ye4-355m2-6 | 200 | 366.9 | 990 | 96.3 | 0,86 | 1.6 | 8.0 | 2.0 | 1910 | 12.15 | 85 | 1722 |
| Ye4-355l1-6 | 220 | 403.6 | 990 | 96.3 | 0,86 | 1.6 | 8.0 | 2.0 | 2101 | 14.25 | 85 | 1810 |
| Ye4-355l-6 | 250 | 457.7 | 990 | 96.5 | 0,86 | 1.6 | 8.0 | 2.0 | 2387 | 15.77 | 85 | 1810 |
| Synchrone Snelheid 750 r/min | ||||||||||||
| Ye4-132s-8 | 2.2 | 5.7 | 710 | 84.5 | 0,70 | 1.8 | 7.5 | 2.0 | 28.2 | 0,05 | 64 | 87 |
| Ye4-132m-8 | 3 | 7.6 | 710 | 85.9 | 0,70 | 1.8 | 7.8 | 2.0 | 38.2 | 0,07 | 64 | 94 |
| Ye4-160m1-8 | 4 | 9.8 | 720 | 87.1 | 0,71 | 1.8 | 7.9 | 2.0 | 50.9 | 0,12 | 68 | 158 |
| Ye4-160m2-8 | 5.5 | 13.1 | 720 | 88.3 | 0,72 | 1.8 | 8.1 | 2.0 | 70.0 | 0,16 | 68 | 167 |
| Ye4-160l-8 | 7.5 | 17.2 | 720 | 89.3 | 0,74 | 1.8 | 7.8 | 2.0 | 95.5 | 0,18 | 68 | 176 |
| Ye4-180l-8 | 11 | 25.0 | 730 | 90.4 | 0,74 | 1.8 | 7.9 | 2.0 | 140.1 | 0,36 | 70 | 264 |
| Ye4-200l-8 | 15 | 33.3 | 730 | 91.2 | 0,75 | 1.8 | 8.0 | 2.0 | 191.0 | 0,52 | 73 | 261 |
| Ye4-225s-8 | 18.5 | 40.9 | 730 | 91.7 | 0,75 | 1.8 | 8.1 | 2.0 | 235.6 | 0,71 | 73 | 277 |
| Ye4-225m-8 | 22 | 47.8 | 730 | 92.1 | 0,76 | 1.8 | 8.3 | 2.0 | 280.1 | 0,88 | 73 | 329 |
| Ye4-250m-8 | 30 | 63.9 | 730 | 92.7 | 0,77 | 1.8 | 7.9 | 2.0 | 382.0 | 1.17 | 75 | 400 |
| Ye4-280s-8 | 37 | 77.4 | 735 | 93.1 | 0,78 | 1.8 | 7.9 | 2.0 | 471.1 | 1.98 | 76 | 661 |
| Ye4-280m-8 | 45 | 93.9 | 735 | 93.4 | 0,78 | 1.8 | 7.9 | 2.0 | 573.0 | 2.35 | 76 | 674 |
| Ye4-315s-8 | 55 | 111.5 | 740 | 93.7 | 0,80 | 1.6 | 8.2 | 2.0 | 700.3 | 3.93 | 82 | 1005 |
| Ye4-315m-8 | 75 | 151.2 | 740 | 94.2 | 0,80 | 1.6 | 7.6 | 2.0 | 955.0 | 5.38 | 82 | 1105 |
| Ye4-315l1-8 | 90 | 178.8 | 740 | 94.4 | 0,81 | 1.6 | 7.7 | 2.0 | 1146 | 6.40 | 82 | 1165 |
| Ye4-315l2-8 | 110 | 217.9 | 740 | 94.7 | 0,81 | 1.6 | 7.7 | 2.0 | 1401 | 7.51 | 82 | 1285 |
| Ye4-355m1-8 | 132 | 260.9 | 740 | 94.9 | 0,81 | 1.6 | 7.7 | 2.0 | 1681 | 11.80 | 89 | 1640 |
| Ye4-355m2-8 | 160 | 311.7 | 740 | 95.1 | 0,82 | 1.6 | 7.7 | 2.0 | 2037 | 14.39 | 89 | 1740 |
| Ye4-355l3-8 | 185 | 360.5 | 740 | 95.4 | 0,82 | 1.6 | 7.7 | 2.0 | 2356 | 16.55 | 89 | 1770 |
| Ye4-355l-8 | 200 | 388.5 | 740 | 95.4 | 0,81 | 1.6 | 7.7 | 2.0 | 2547 | 18.71 | 89 | 1810 |
| Synchrone Snelheid 600 r/min | ||||||||||||
| Ye4-315s-10 | 45 | 98.0 | 590 | 93.0 | 0,75 | 1.5 | 6.2 | 2.0 | 716.2 | 3.93 | 82 | 1005 |
| Ye4-315m-10 | 55 | 119.8 | 590 | 93.0 | 0,75 | 1.5 | 5.8 | 2.0 | 875.4 | 4.78 | 82 | 1105 |
| Ye4-315l1-10 | 75 | 159.9 | 590 | 93.8 | 0,76 | 1.5 | 5.9 | 2.0 | 1194 | 6.40 | 82 | 1165 |
| Ye4-315l2-10 | 90 | 189.3 | 590 | 93.8 | 0,77 | 1.5 | 6.0 | 2.0 | 1433 | 7.51 | 82 | 1285 |
| Ye4-355m-10 | 90 | 188.5 | 590 | 93.3 | 0,77 | 1.45 | 6.0 | 2.0 | 1433 | 9.80 | 89 | 1490 |
| Ye4-355m1-10 | 110 | 227.5 | 590 | 93.3 | 0,78 | 1.45 | 6.0 | 2.0 | 1433 | 11.82 | 89 | 1510 |
| Ye4-355m2-10 | 132 | 272.1 | 590 | 93.7 | 0,78 | 1.45 | 6.0 | 2.0 | 1751 | 14.42 | 89 | 1610 |
| Ye4-355l-10 | 160 | 329.8 | 590 | 93.7 | 0,78 | 1.45 | 6.0 | 2.0 | 2547 | 17.88 | 89 | 1710 |
